Vanquish VS4-10 Portal Builders Kit

VPS09023
Vanquish VS4-10 Portal Builders Kit

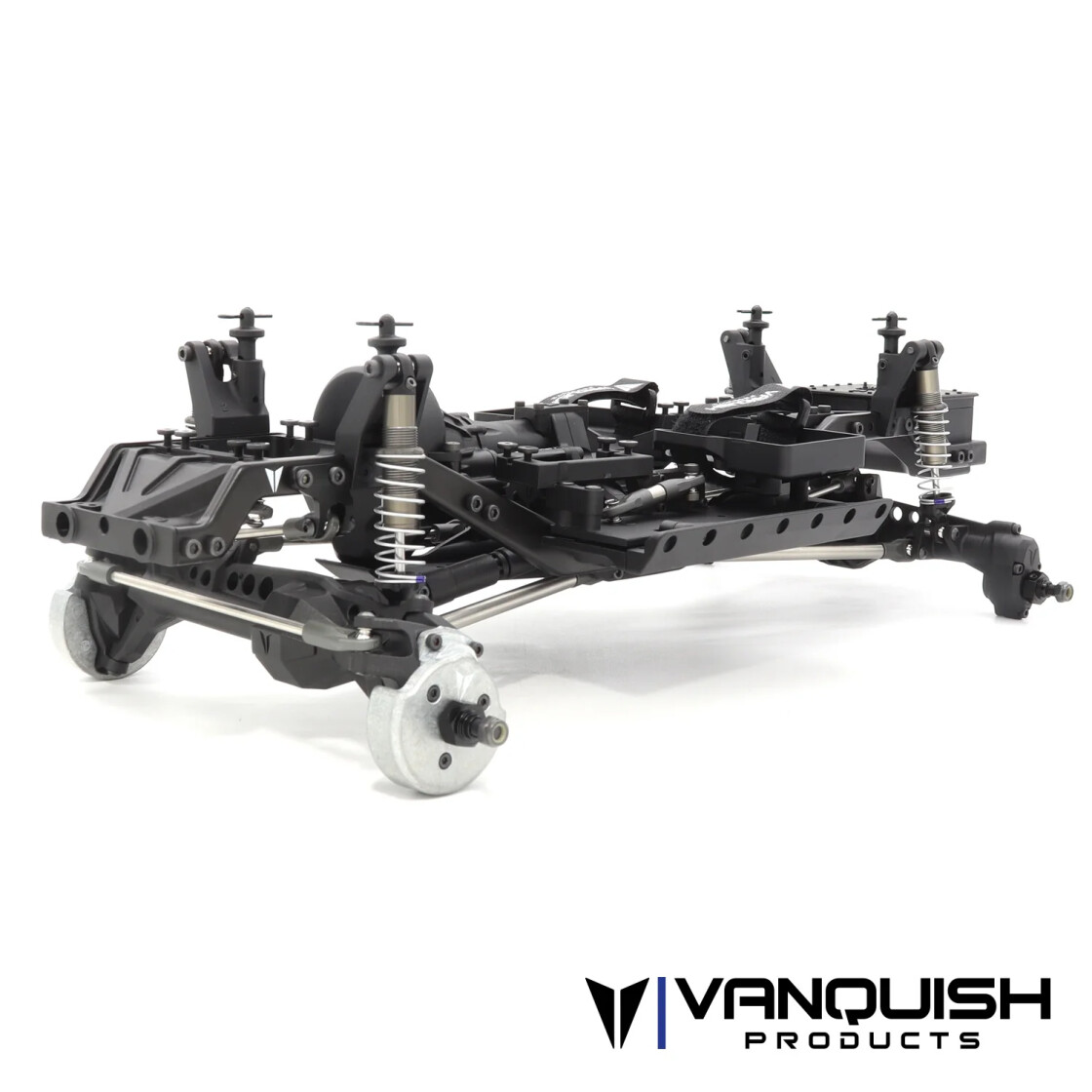

The Vanquish VS4-10 Portal Builders Kit is a premium 1/10 scale RC crawler platform designed for serious builders who demand top-tier performance, modularity, and reliability. Crafted by Vanquish Products, this kit combines the rugged F10 portal axles and the highly adjustable VFD Twin transmission to deliver maximum ground clearance, torque, and control over technical terrain.

The chassis is built around a strong steel C-channel frame with strategically positioned mounting points for your electronics, battery, and body. The modular design allows endless customization to suit personal preferences and advanced setups. The included Incision S8E shocks with hard-anodized aluminum bodies offer smooth damping and durability, while the precision ISD10 driveshafts with CV joints ensure efficient power transfer even at extreme articulation angles.

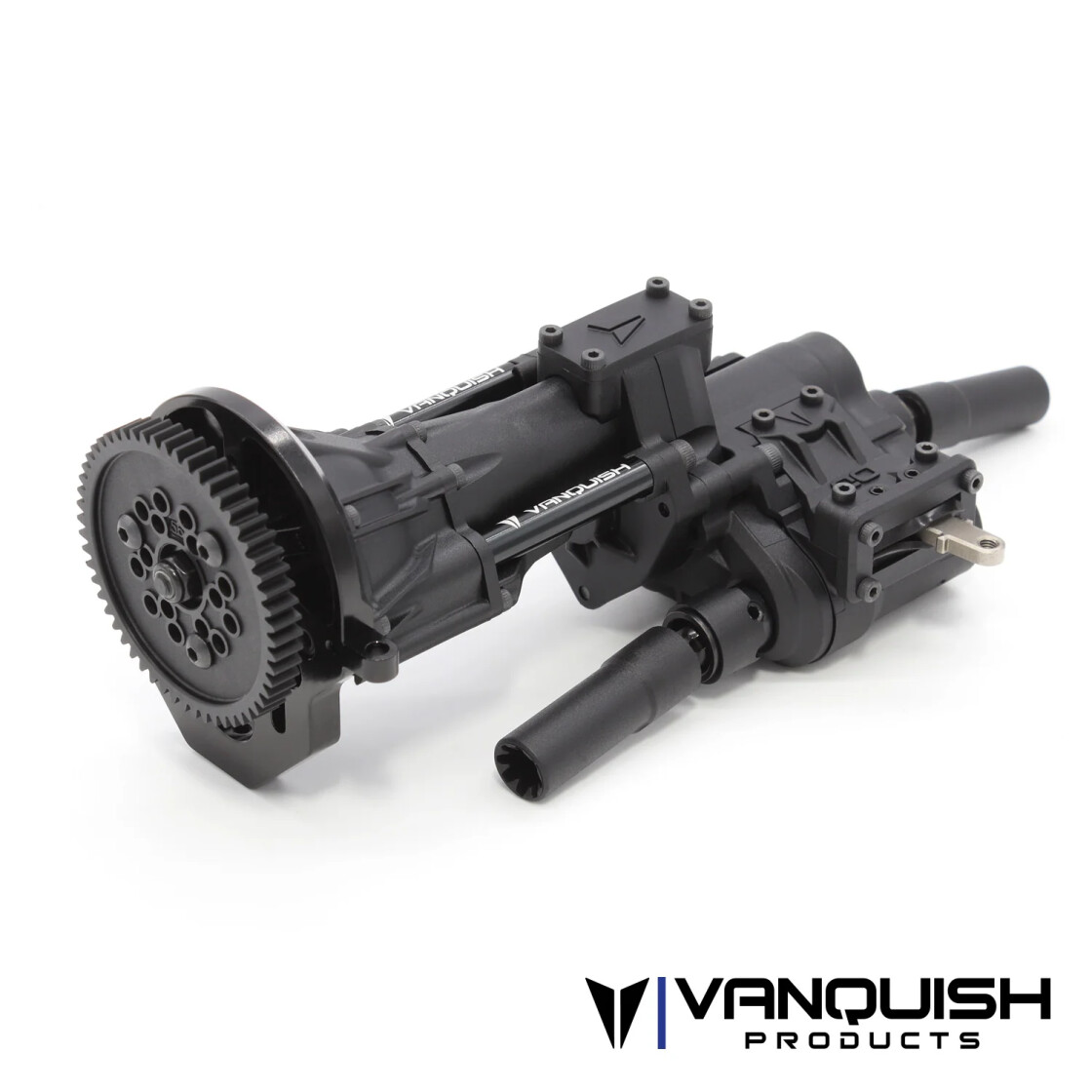

The heart of this kit is the VFD Twin transmission, providing both selectable overdrive (6.5% or 46%) and a 3-position dig function that allows front-only drive mode for tight turns and crawling precision. Whether you’re competing, trail running, or building your ultimate scaler, the VS4-10 Portal Builders Kit is engineered to exceed expectations.

FEATURES:

• VFD Twin transmission with selectable 6.5% or 46% overdrive and 3-position dig unit

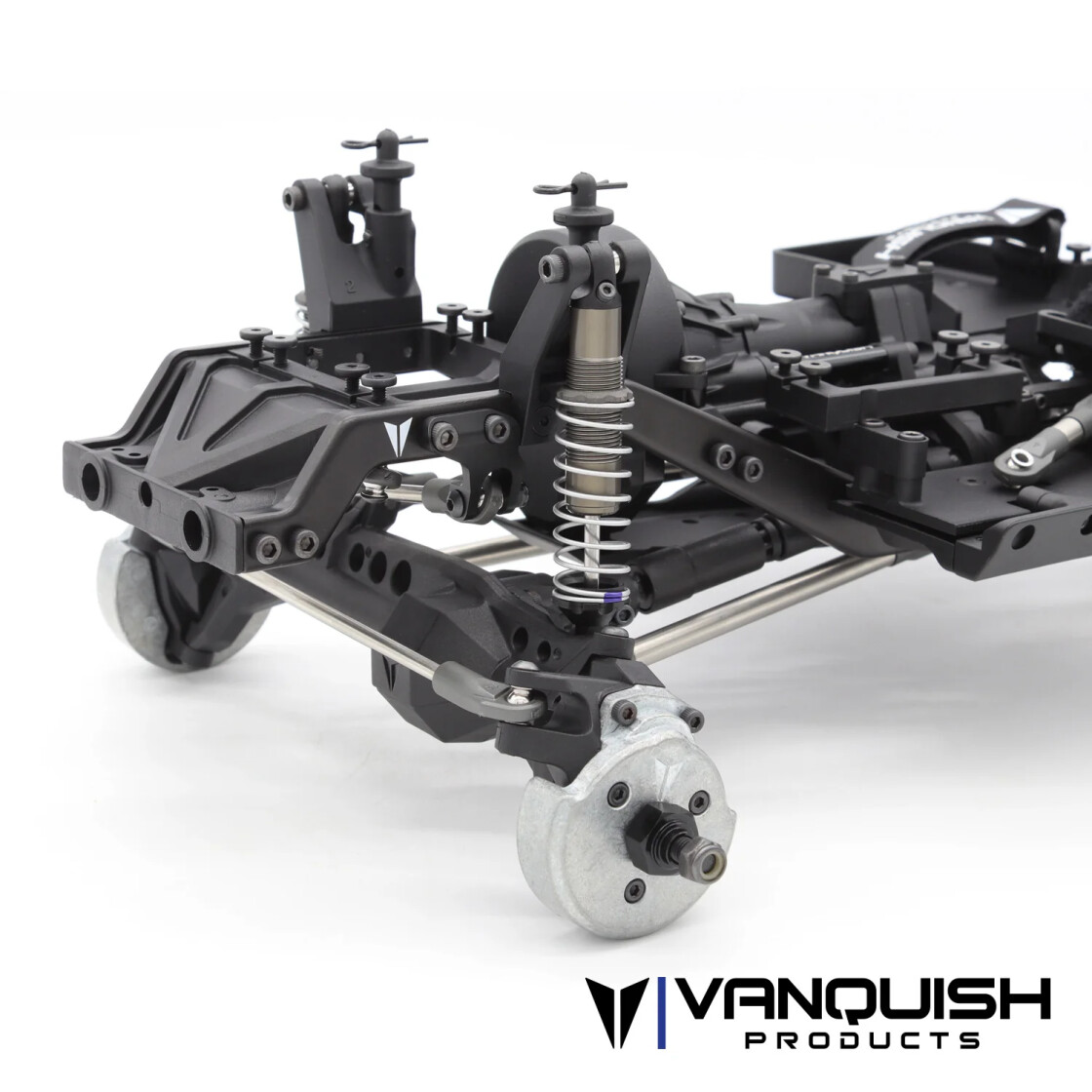

• F10 portal axles with 49° steering angle, aluminum center housings, and high ground clearance

• ISD10 driveshafts with authentic CV joints for optimal torque delivery and flexibility

• Incision S8E shocks (80mm) with hard-anodized aluminum bodies and threaded caps

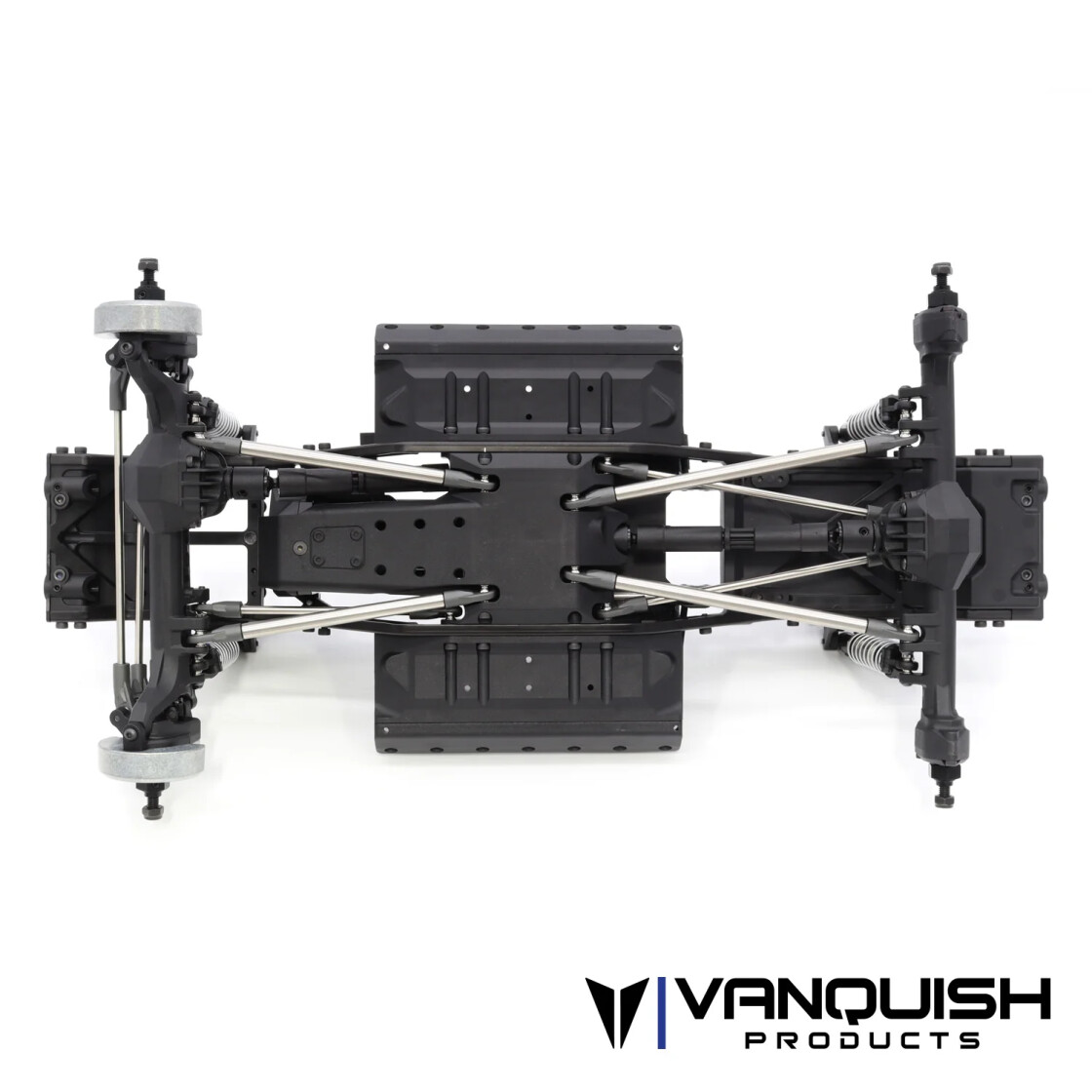

• C-channel steel frame with reinforced layout for rigidity and modularity

• Integrated rock sliders with adjustable body mounts and optional step mounts

• Large battery tray suitable for a variety of LiPo battery types

• Includes threadlock, grease, 30wt shock oil, and assembly tool

Technical Specifications:

• Scale: 1/10

• Wheelbase: 313 mm

• Overall Width (Hex to Hex): 200 mm

• Axle Gear Ratio: 5.25:1

• Front Ratio (6.5% Overdrive): 53.7:1

• Front Ratio (46% Overdrive): 35.8:1

• Rear Ratio: 57.2:1

• Recommended Tires: 1.9″

• Recommended Wheels: 1.9″
