Vanquish VS4-10 Origin Classic Kit

Vanquish VS4-10 Origin Classic Kit

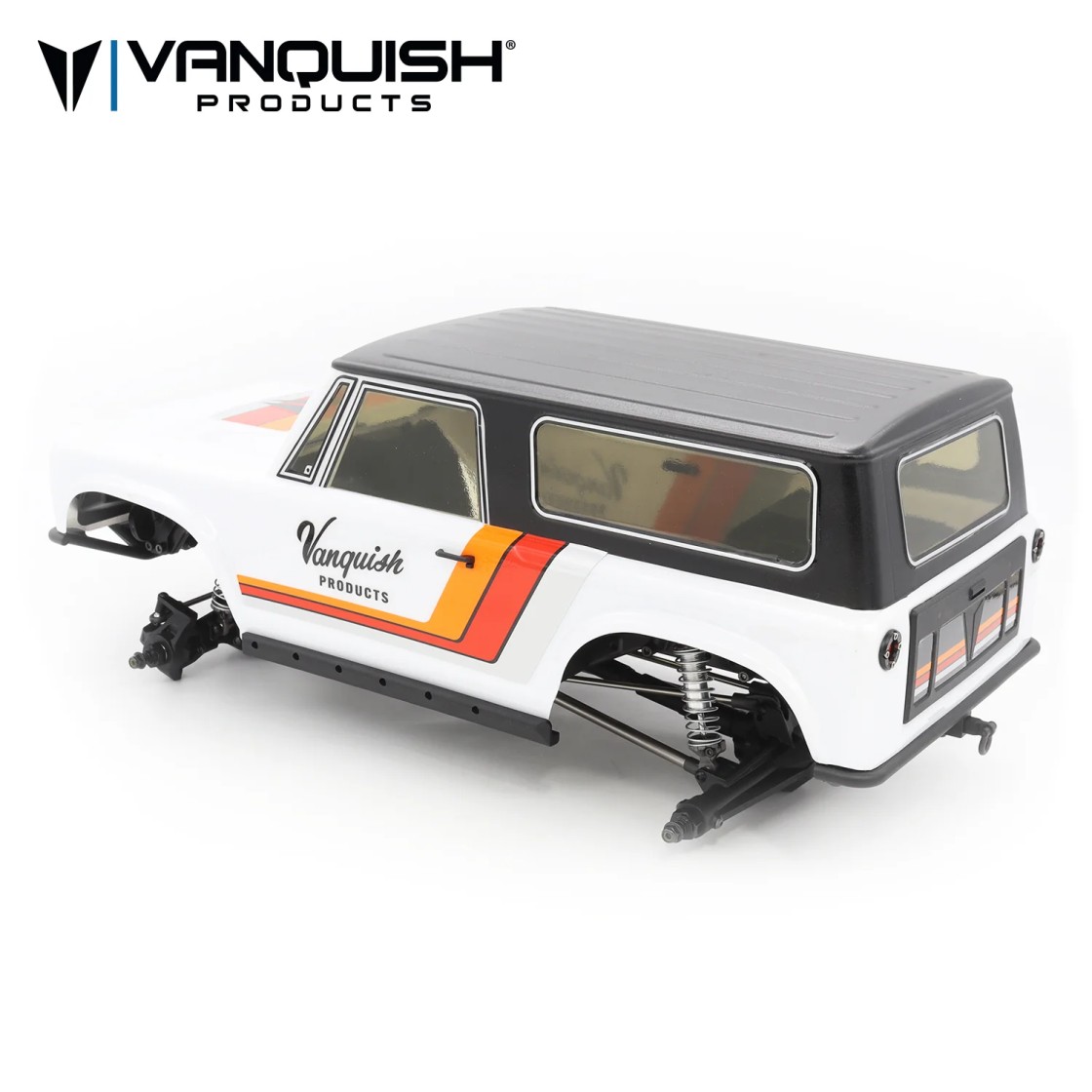

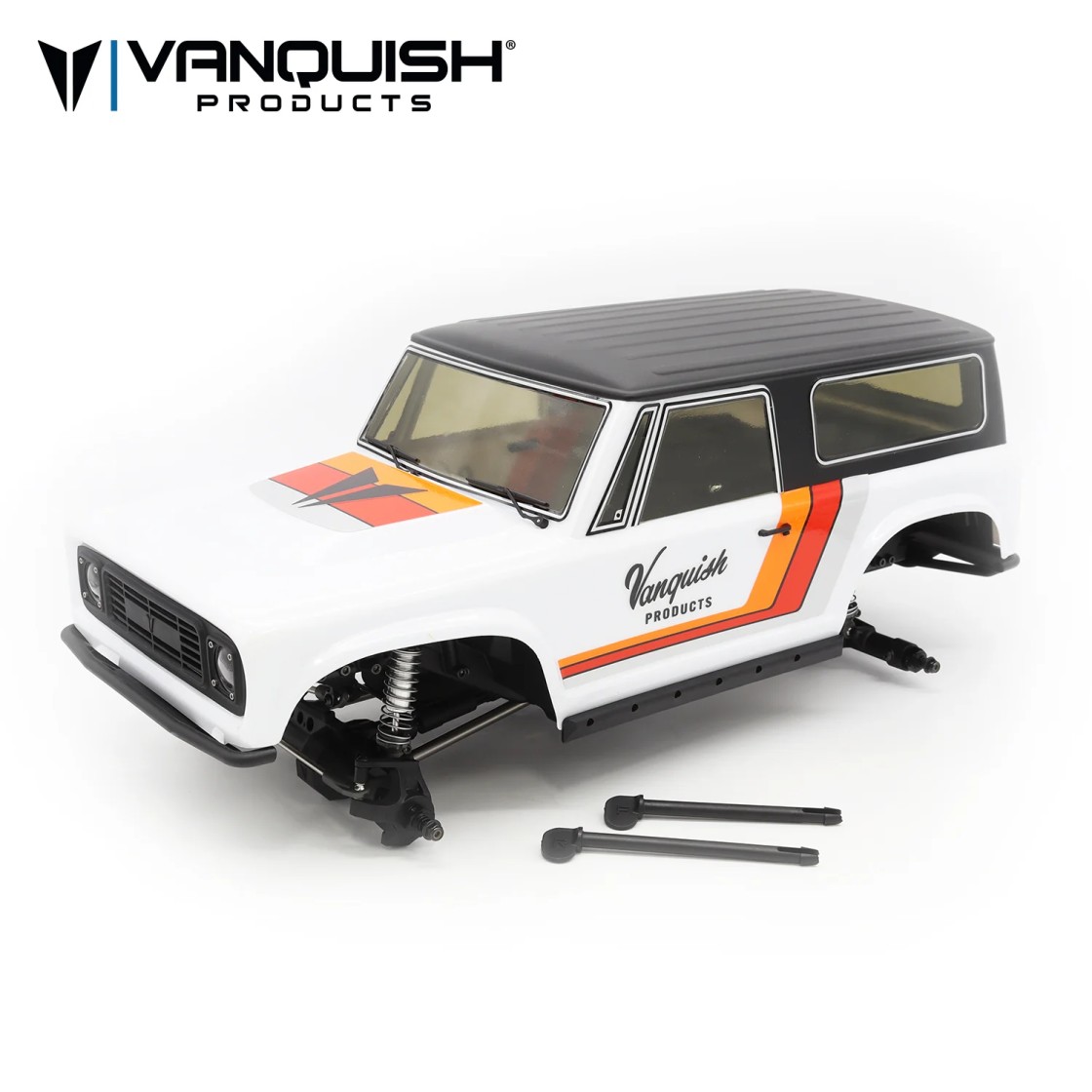

The Origin Classic is built on the proven VS4-10 chassis and brings back the original body design from Vanquish Products’ first kit. A refined, clipless mounting system is integrated into the molded inner fenders for a clean exterior look and quick access. These new inner fenders feature adjustable shock positions with integrated shock towers, a first for the VS4-10 platform. The VFD transmission delivers durable performance with a low, forward-biased weight distribution. The molded F10 straight axles provide reliable strength and broad compatibility with a wide range of option parts.

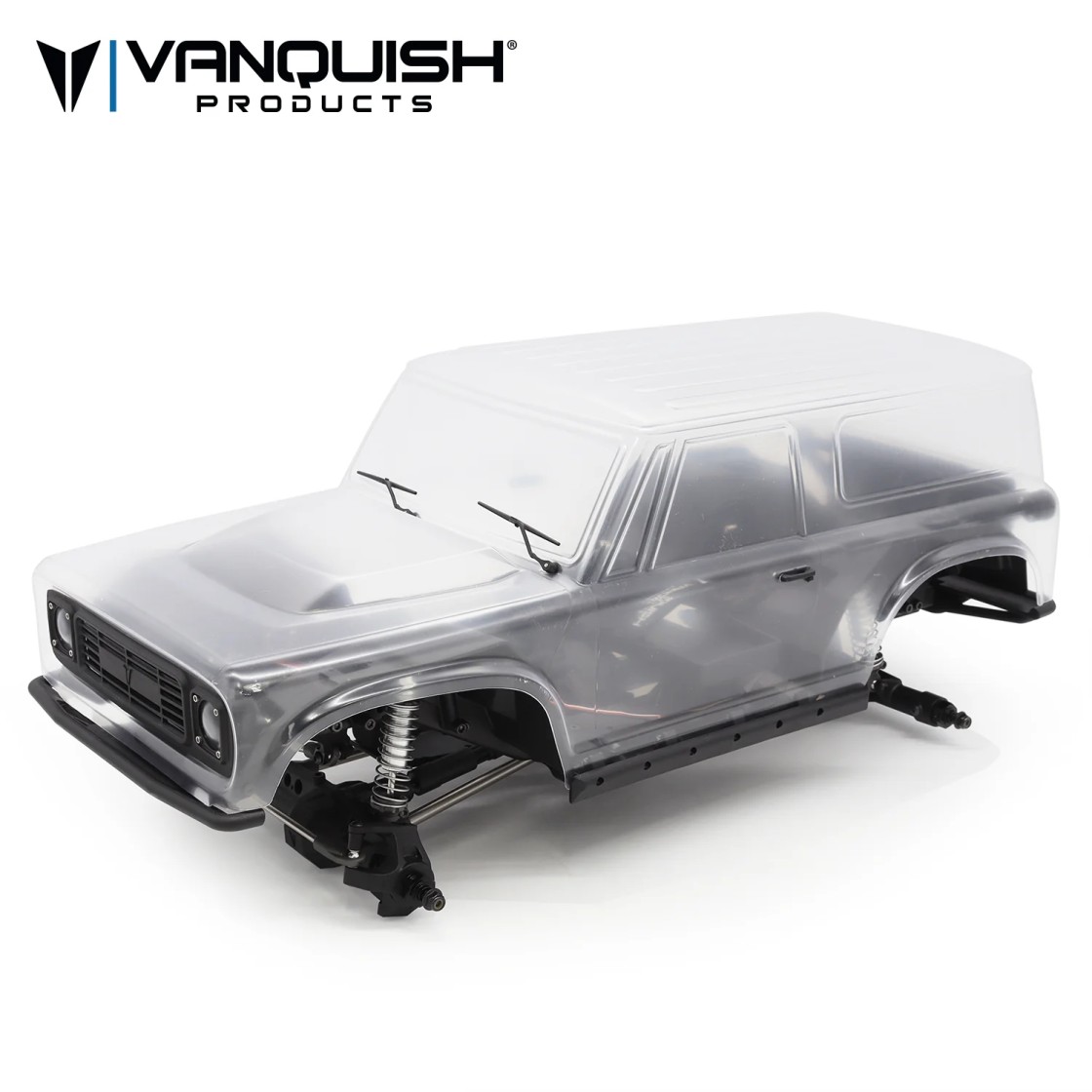

Note: The body must be painted by the customer.

VFD Transmission

The VFD transmission is designed to provide an optimal balance of performance, scale appearance, strength, and versatile optional accessories. The VFD design places the motor forward and as low as possible to keep the weight where you want it. Out of the box, the VFD Spec transmission provides 6.5% overdrive for better turning and climbing performance without taxing your electronics. The T-case utilizes unique replaceable bearing plates to provide adjustable bearing positioning. The modular design of the bearing plates allows optional gear ratios to be used inside the T-case. The VFD transmission is compatible with 540 brushed and brushless motors*

Internally, the VFD is built for durability with hardened chromoly shafts, sintered metal internal gears, and replaceable bearing plates reinforcing critical load points. A slipper eliminator ensures maximum power transfer, while the molded transmission housing maintains a scale appearance. The extended skid plate provides added protection for the motor in rough terrain.

• Compatible with 540 brushed and brushless motors*
• Standard overdrive: 6.5%
• Sintered internal gears
• Hardened chromoly shafts
• Molded VFD extended skid plate for motor protection
• Molded Akku and electronics trays
• Full ball bearing transmission
• Scale molded transmission housing
• Molded 6mm motor plate
• Molded spur gear cover
• 32P 52T spur gear and 15T steel pinion

F10 Straight Axles

The F10 plastic molded straight axles benefit from Vanquish Products’ years of design experience in producing industry-leading axles. The molded F10 straight axles feature an ultra-rigid design with an integrated truss that ties both ends of the axle together, plus oversized C ends with an integrated panhard mount.

• Universal style axle shafts
• 49 degrees of steering
• High caster reinforced C-hub
• High-pinion hypoid axle gears (30/8)
• 5mm output shafts with M4 wheel nut
• One-piece molded bearing retainers
• Adjustable lower shock mounting position
• Scale removable third member

Chassis

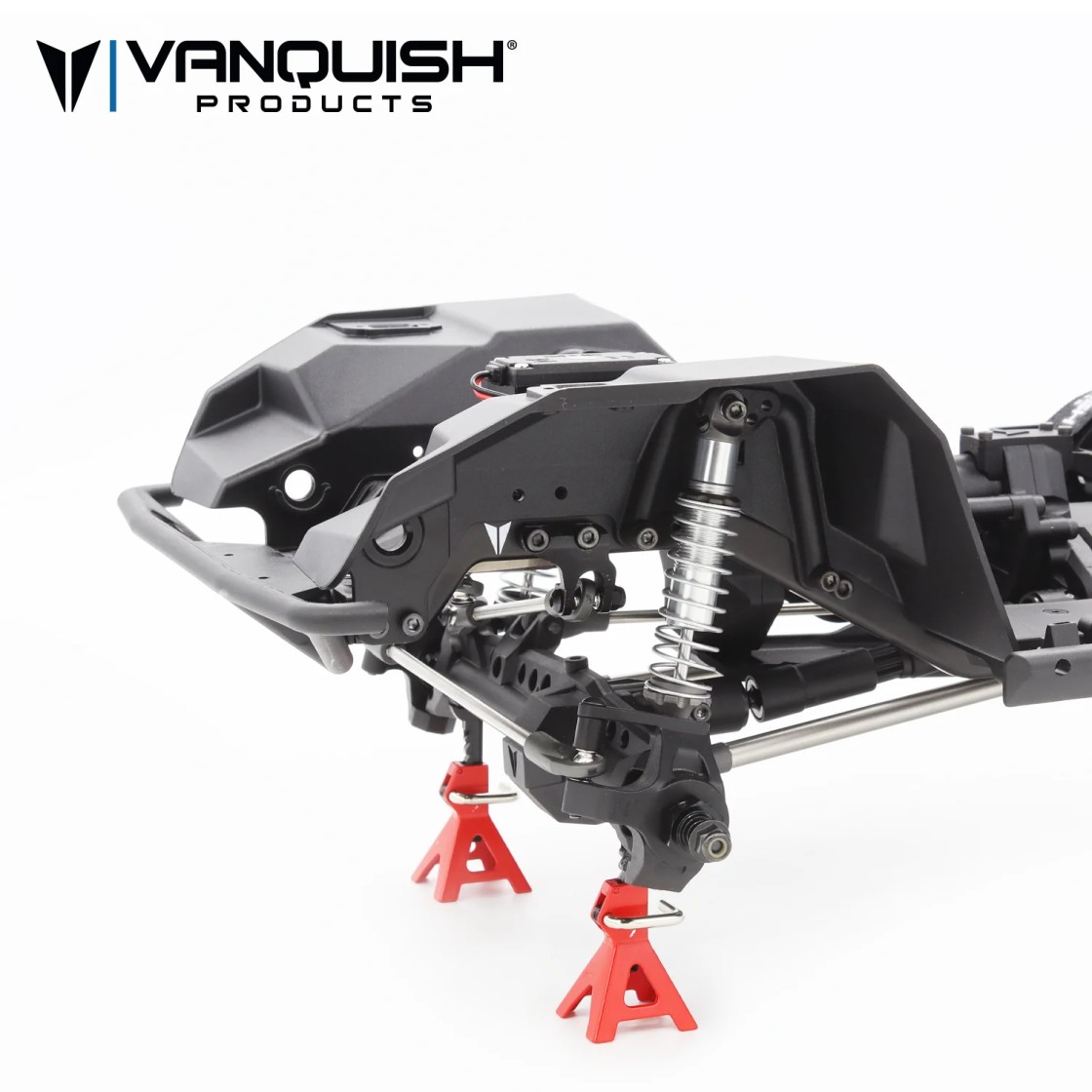

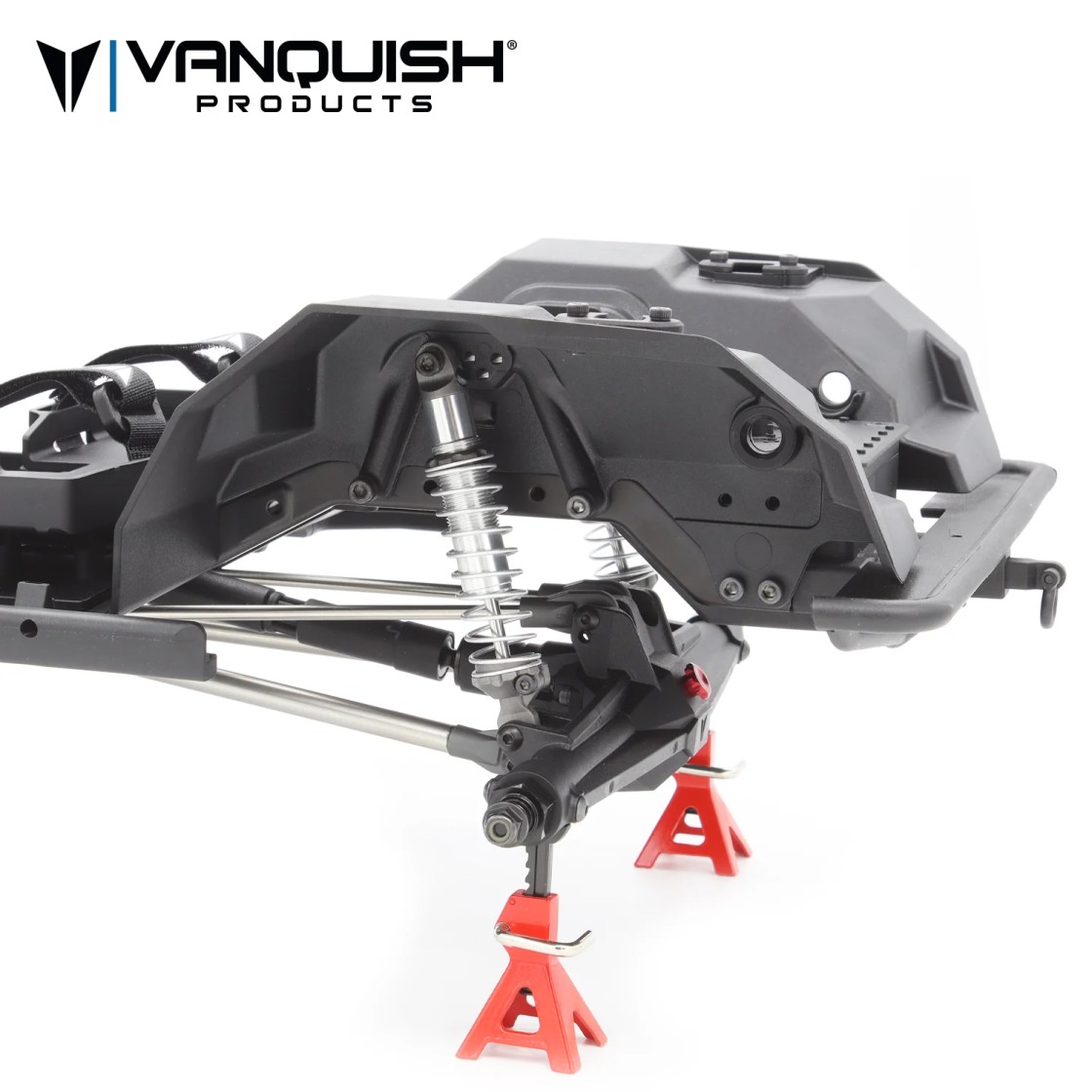

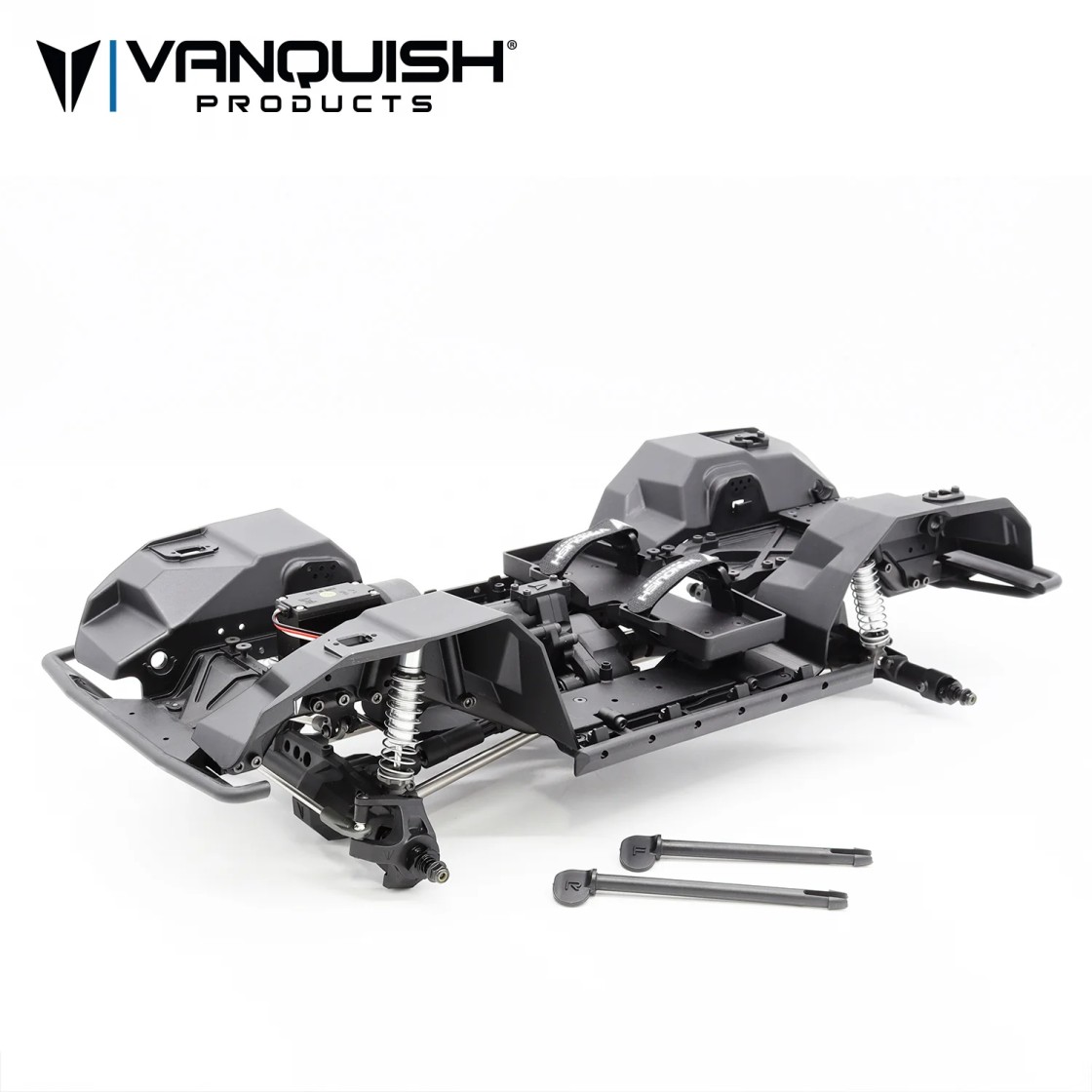

The Vanquish Products VS4-10 chassis is designed to provide a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail. Molded front and rear crossmembers fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion. The panhard mount on the chassis is made from machined aluminum to withstand impacts in severe trail conditions. Molded inner fenders double as adjustable shock towers to capture the top of the 90mm Incision S8E shocks.

• Heavy duty high-clearance steel C-channel frame rails
• Integrated Akku tray and electronics mounting positions
• Stainless steel links

Suspension

Equipped with Incision 90mm S8E shocks, the VS4-10 delivers smooth suspension articulation with dual O-ring seals, keyed spring cups, and polished steel shock shafts. The 3-link front suspension with panhard keeps the servo hidden for scale realism without sacrificing suspension travel.

• S8E Incision 90mm shocks with bleeder screw shock cap
• Stainless steel links
• Stainless steel pivot balls
• Stainless steel offset lower shock pivot balls for tuning shock width at the axle

Included:

• Threadlock
• Grease
• 30wt shock oil

Specifications



Items Required for Assembly

• Tools
• Paint
• 1.9 x 4.65 in tires
• 1.9 wheels (Vanquish Products or SLW hub compatible wheels required)
• Transmitter and receiver
• 540 motor (standard length)
• Steering servo (25T servo horn included in kit)
• ESC
• Akku
